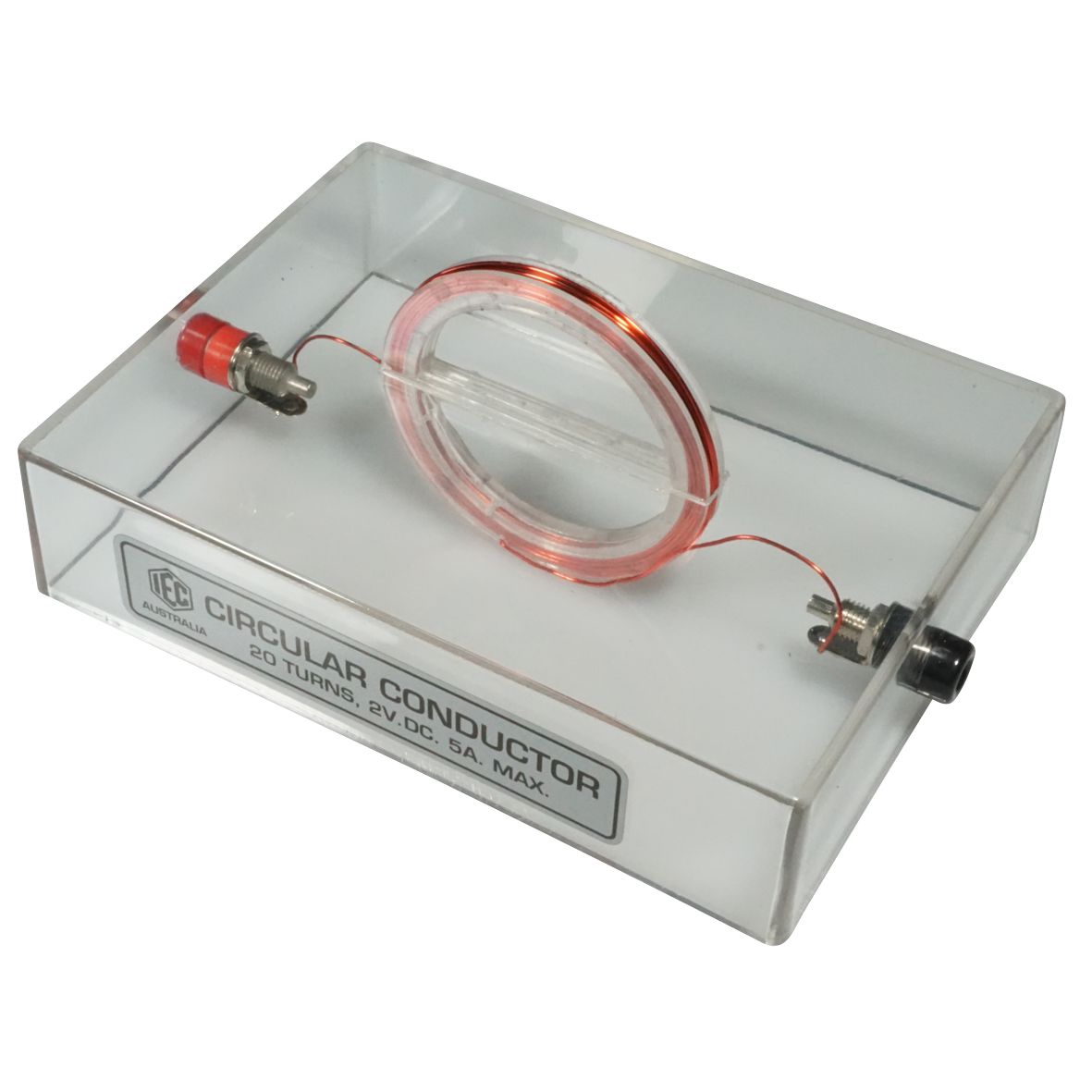

MAGNETIC FIELD DEMO ROUND COIL THRU BASE
- EM2067-020
Magnetic Field Demonstrators: IEC makes 3x different types:
1) EM2067-010 A rectangular coil that provides the field pattern of a straight conductor passing through a surface. 2) EM2067-020 A round coil that provides the field pattern of 2x conductors passing through a surface with current passing up in one and down in the other. 3) EM2067-030 A solenoid wound through the surface to provide the field pattern of a solenoid.
Designed to be used with mini 'plotting compasses', but fine iron filings can show the patterns if the surface is tapped to vibrate the iron particles.
NOTE: Labels are fitted to advise maximum currents to use to avoid overheating.
