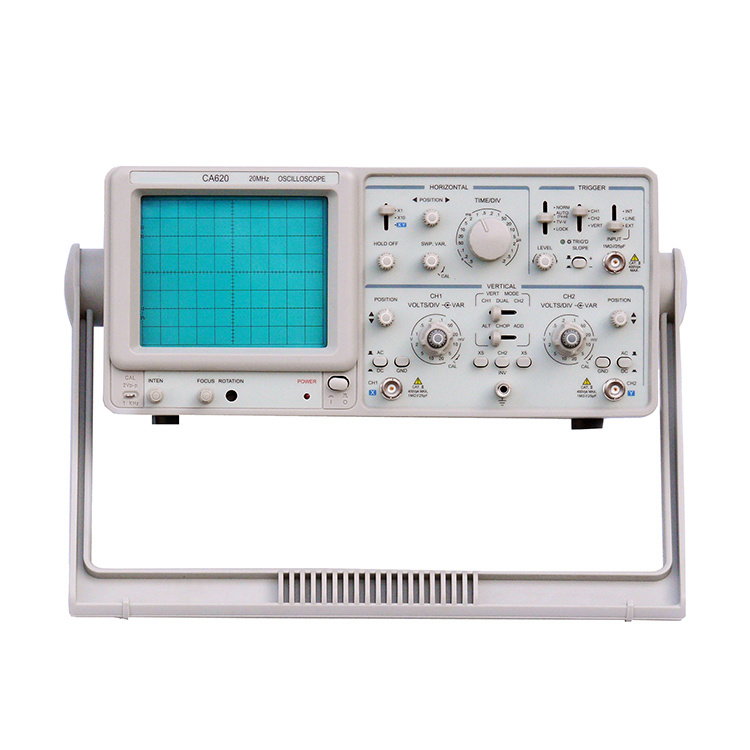

OSCILLOSCOPE, 20 Meg,2 CHANNEL,W/PROBES

• GE3525-01

20MHz/40MHz/50MHz dual channel
ALT triggering function
Encoder for sweep switch

Features:
20MHz/40MHz/50MHz dual channel 20/40/50MHz
ALT triggering function
Encoder for sweepswitch
Fully sealed long life verticalsensitivity switch
10 times sweep magnification?
TV synchronization, X-Y mode
Economic choice for high quality
Type6-inch rectangular with internalgraticule 8x10div (1div=1cm)
Accelerating voltage2kV(20MHz) 12kV(40MHz)
IlluminationFront panel control
Model NO. CA620
Width of brand DC(AC 10Hz)~20MHz
Max. Input Voltage 400V(DC+AC peak )at 1khz
Input Impedance 1mΩ±5% 25pF±5pF
Double Channel Analog Oscilloscope

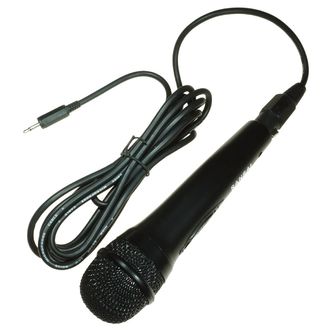

Microphone: IEC part number PA3756-015
Plug for microphone: IEC part number PA0708-001

Our products are for use in a laboratory or educational settings only
Use under appropriate supervision
