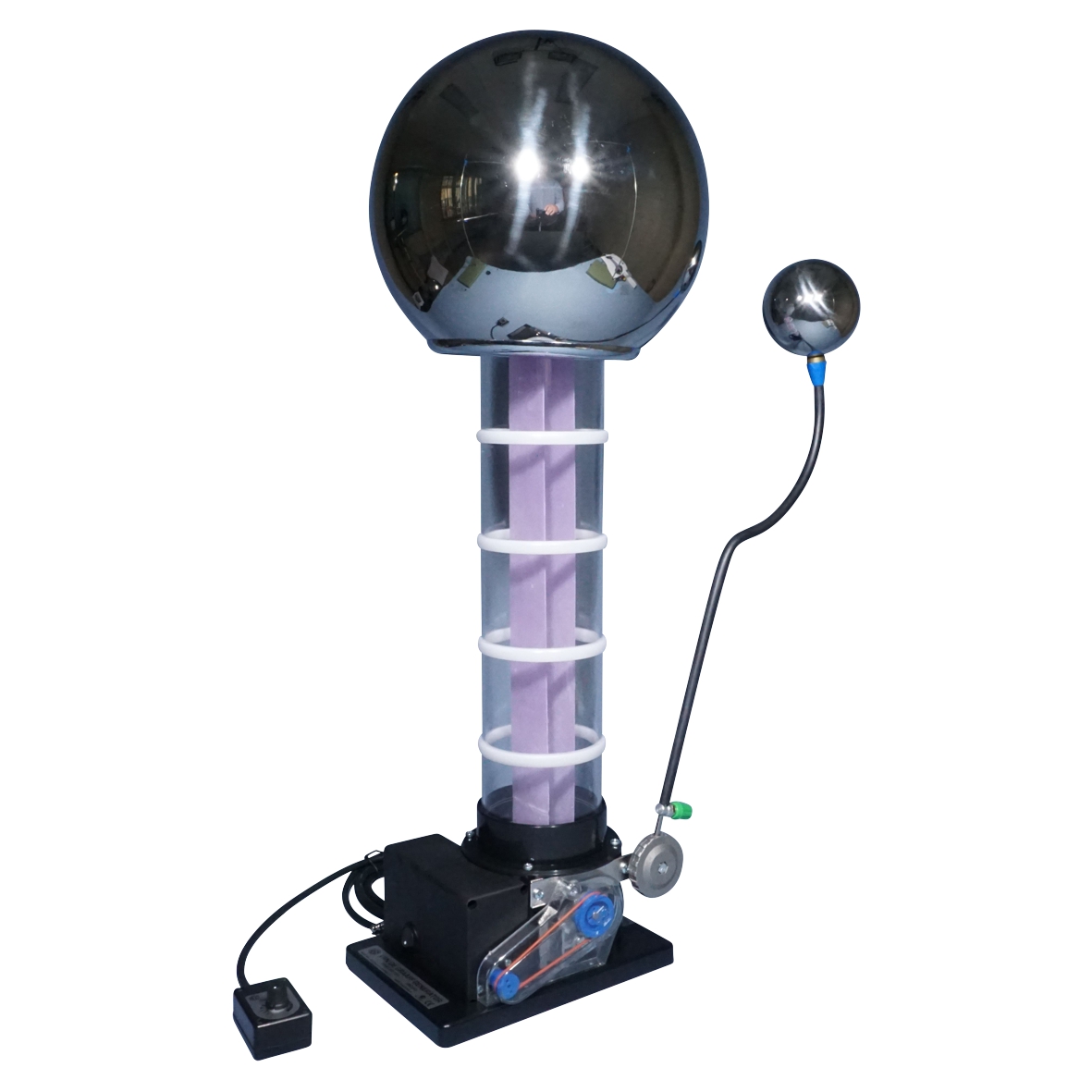

VAN DE GRAAFF LARGE 250mmD 400kV 240V.AC. with REMOTE
- EM4134-101R
This model is now IECs standard "Large" model Van De Graaff. The 250mm diameter ball is a good size and is in proportion with all the rest of the instrument's construction.
This model now uses an insulation tube to protect the belt, but the pulleys, the belt and the combs are accessible for inspection, cleaning or adjustment at both the top and bottom ends of the tube. The belt is a long lasting Silicone rubber and both performance and reliability is excellent.
The whole instrument can easily be dismantled down to the components to reduce size for transport. The drive unit can be removed easily for return to IEC should repair be required but the whole instrument is not required to be sent. This is a big saving in freight.
NOTE: IEC no longer makes the smaller model with the 200mm diameter ball.
Instruction Sheet
